Determine if you have the 128GB or 256GB variant of the Intel Skull Canyon (Dual Display Flex)

Press F10 at boot to see the boot selection menu

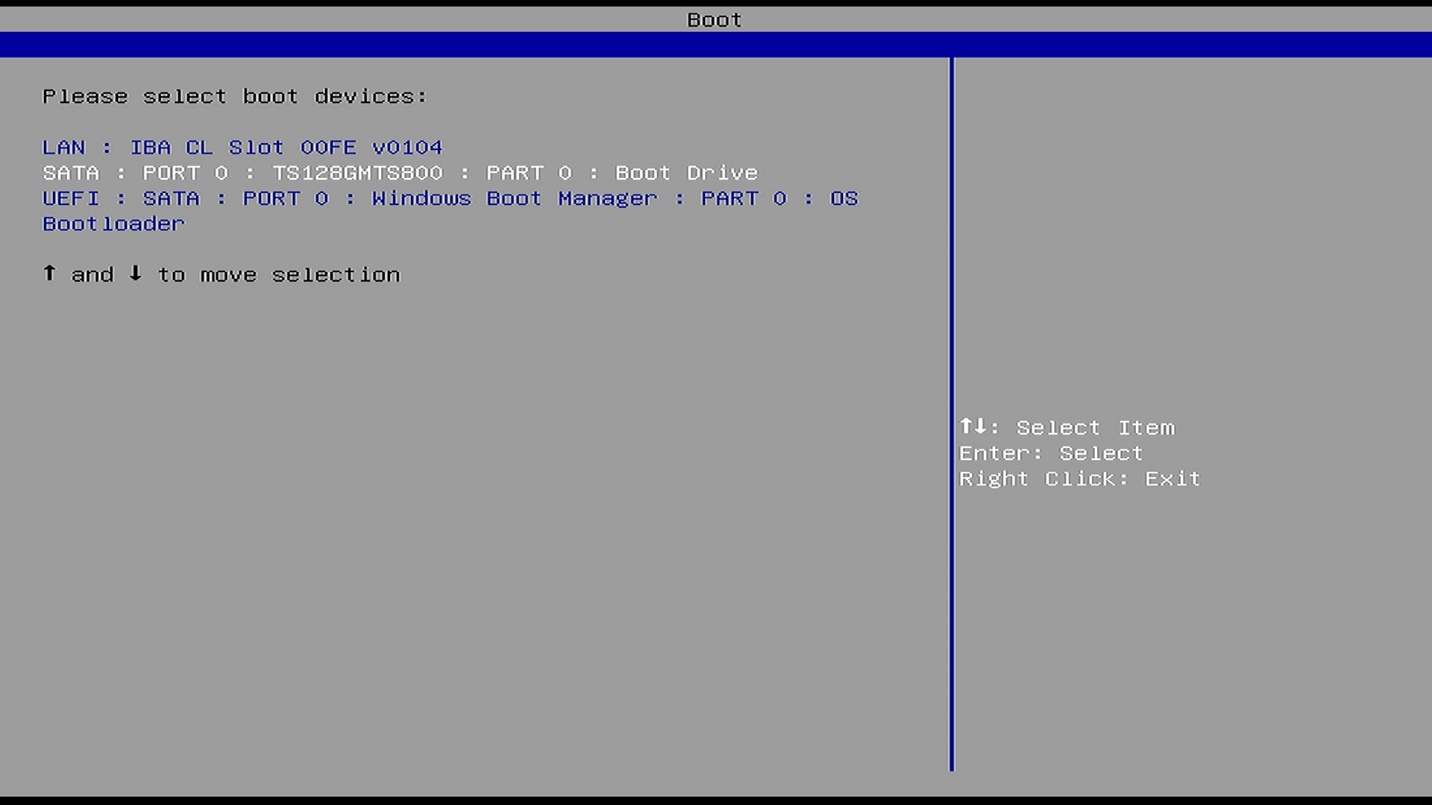

128GB variant will show SATA : Port 0 : TS128GHTS800

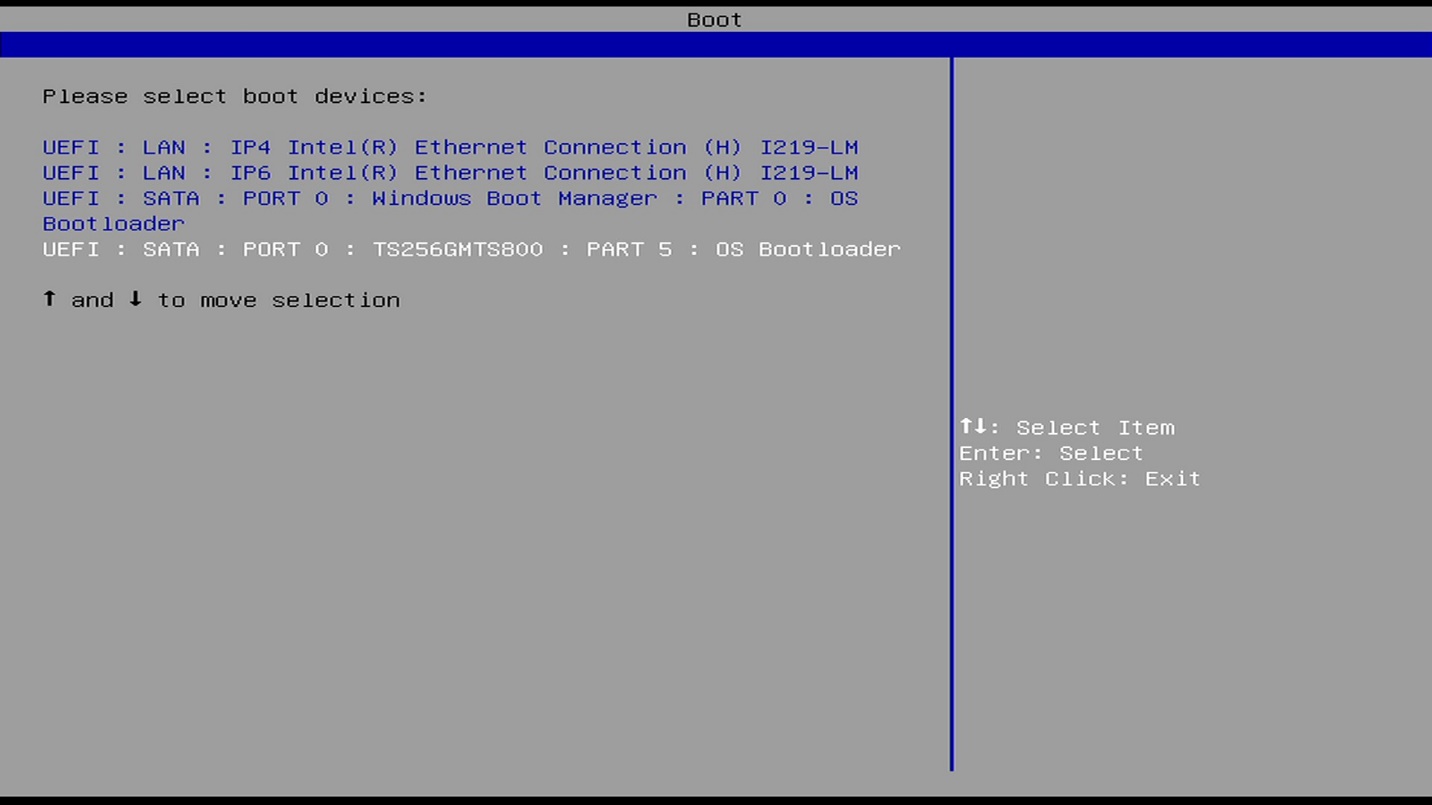

256GB variant will show UEFI : SATA : Port 0 : TS256GMTS800

To remotely determine the variant you have:

1. Log in to the system as admin
2. Click ‘Start’, Then type ‘Device Manager’, then hit enter
3. Open ‘Disk drives’ and check the drive name

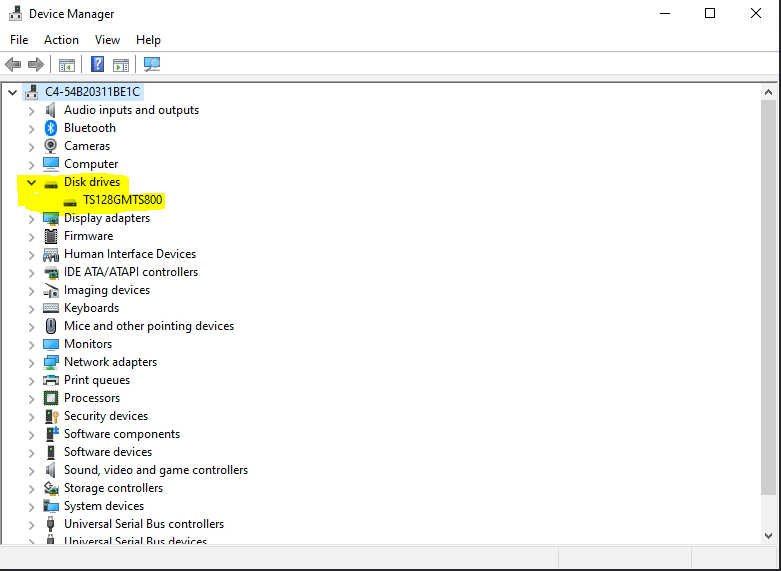

128GB variant

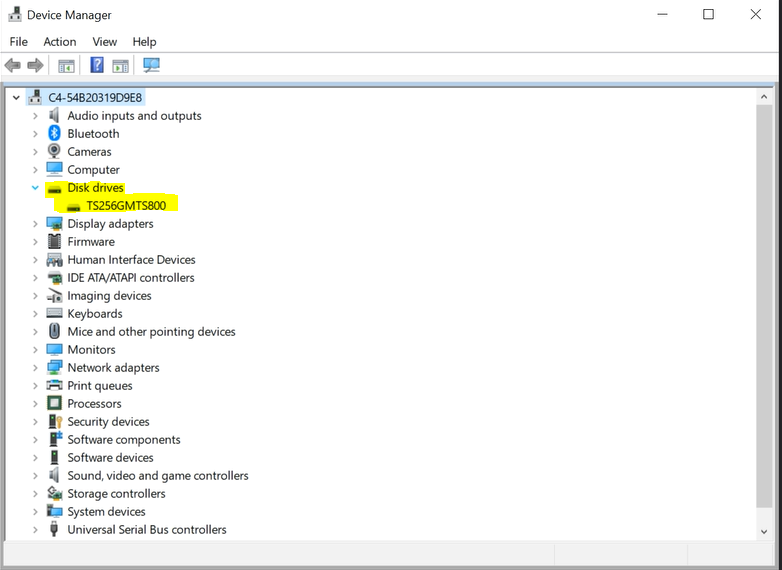

256GB variant

Intel Skull (DD) reimage process

1. Download the image here:
   • 256GB variant: https://flexfiles.crestron.com/DDImage
   • 128GB variant (Teams): https://flexfiles.crestron.com/DDTeamsImage
   • 128GB variant (Zoom): https://flexfiles.crestron.com/DDZoomImage

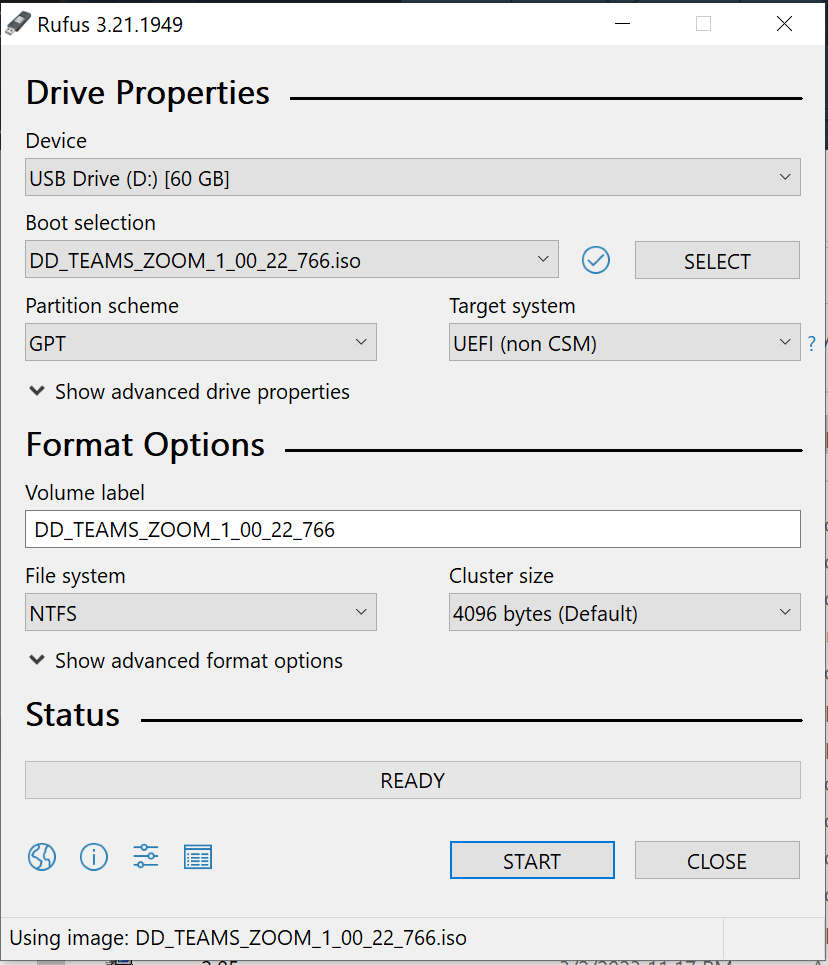

2. Create USB drive via Rufus (https://flexfiles.crestron.com/Rufus )

• • Partition scheme – GPT
  • File system - NTFS

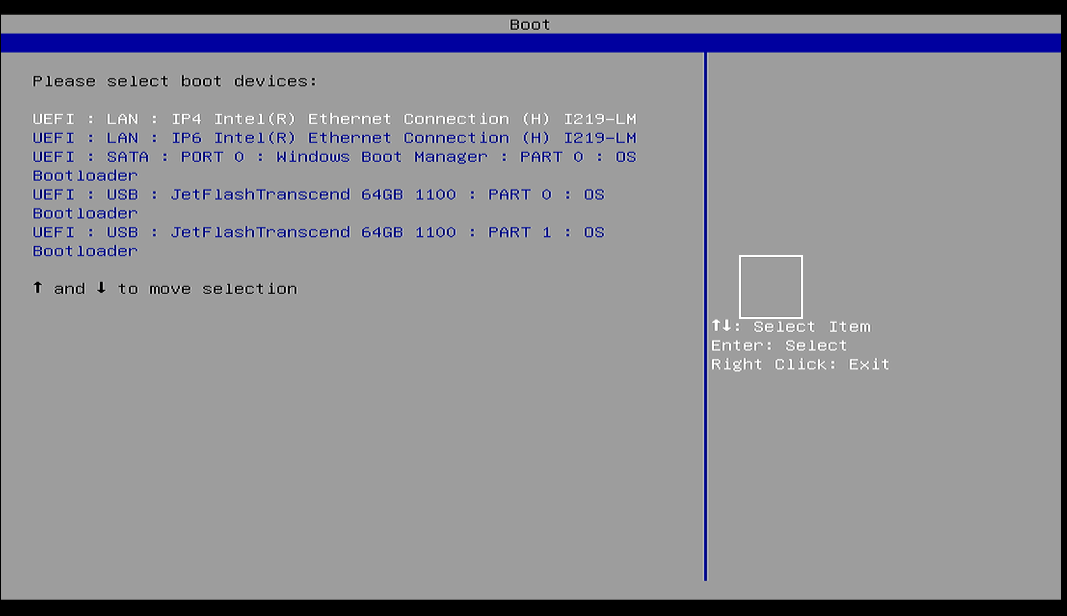

1. Boot and press F10 to enter boot selection menu.
2. Select UEFI : USB : <USB Drive name>.

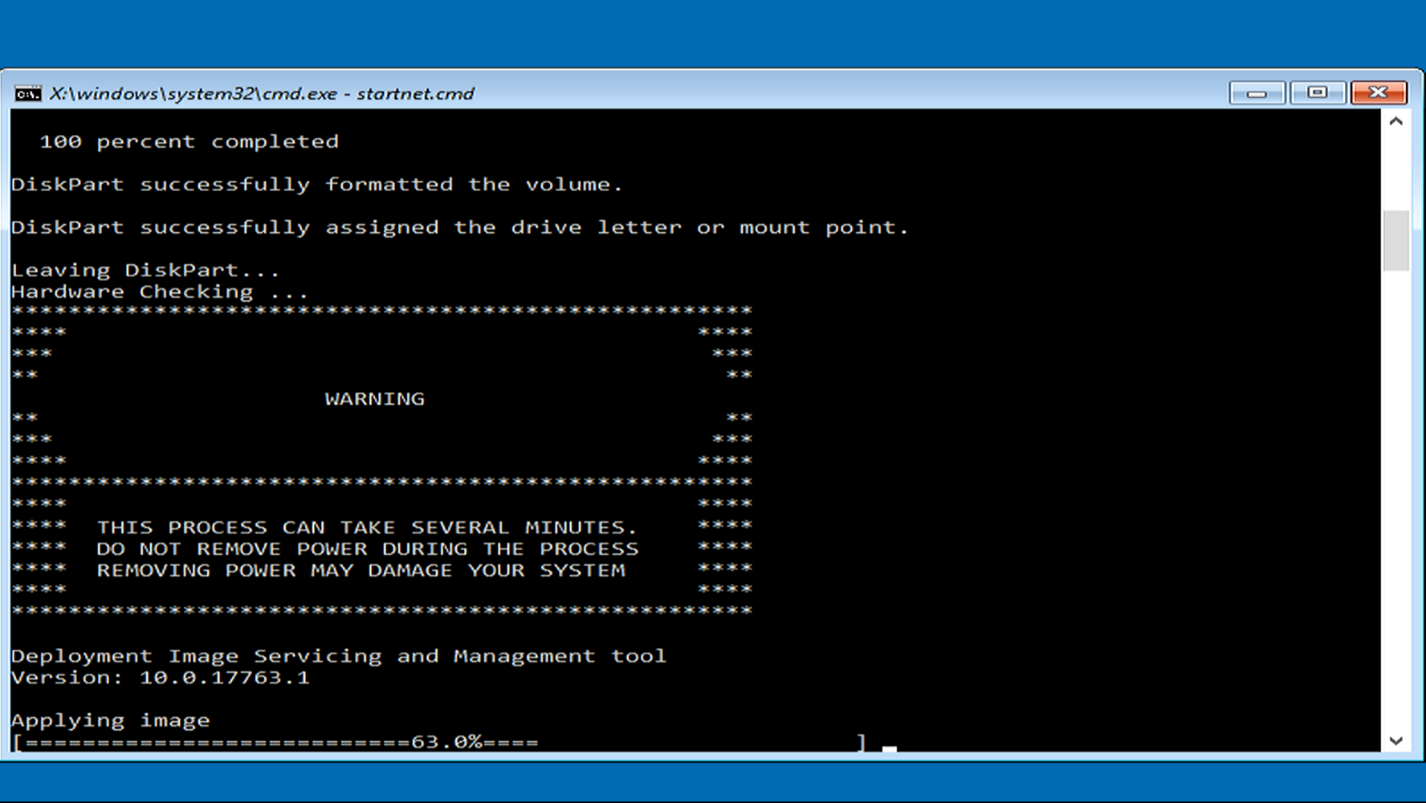

3. Image will be applied.

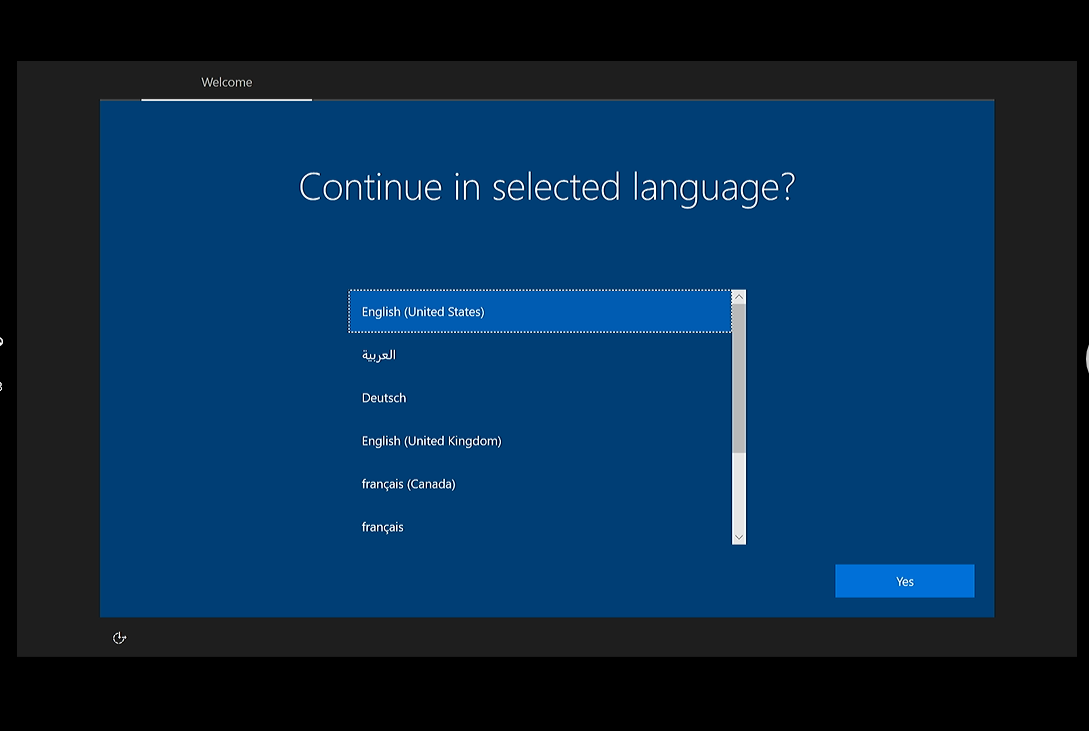

4. Once the image has been applied, select language and keyboard layout.

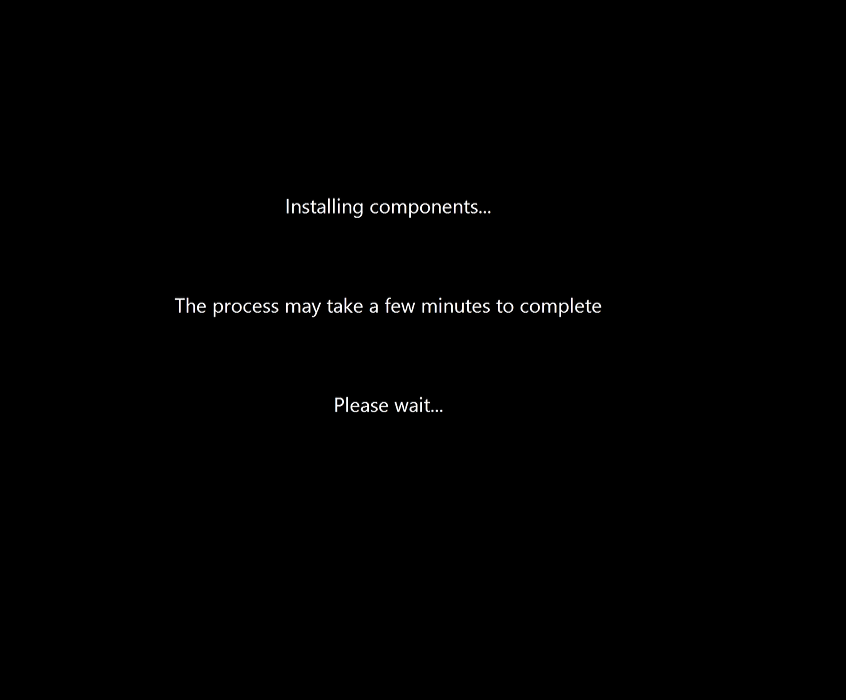

5. The installation will continue after selecting language and keyboard.

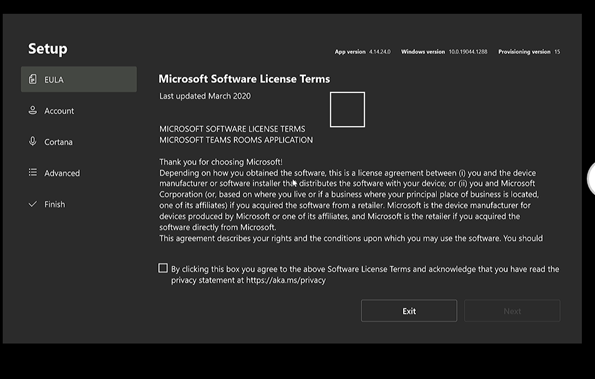

6. Once the Teams Room EULA is displayed, the system has now been restored to factory defaults with a new image.
